Printing House Equipment

Index BrailleBox V5

The award-winning Braille-Production-Printer
The BrailleBox V5 is a high speed printer for printing Braille documents on single sheet paper. Due to is excellent design it is easy to handle and user-friendly. As multiple winner of famous design awards the BrailleBox is perfect and the smallest and lightest printer available at the moment. It still is very convenient for printing extensive documents and books and assures extraordinary printing quality at a very high speed. This printer is very easy to operate for blinds as well as non-blinds.

The magazine format with recommended paper sizes of A3 or 11×17 inch provides high speed while printing Braille documents on single sheet paper and the automatic organization of the pages ensures immediate printing of Braille books or other large Braille documents.

Price:
14.995,00 EUR after tax
(16.044,65 EUR incl. tax)
Item-No.: HW-46600

Improvement / innovations compared to the previous model

  • Wireless internet connection via WLAN
  • Significant higher speed
  • Up to 45% faster than the previous model
  • New, user-friendly control panel
  • Firmware 2.0
  • Only two cables for connection to the main module necessary
  • Bluetooth (at this point – March 2017 – the printer is able to work via Bluetooth but for now this function is not available yet, but will be with future firmware updates)

Main features

  • 300 CPS
  • 900 A4 pages/hour
  • Printing with mobile devices
  • Easily prints Braille-documents in book layout
  • Multilingual
  • Automatic opening and closing of the collection tray
  • < 45% faster in printing than V4
  • WIFI compatible
  • Supports Index-direct-Braille (idB)
  • Web port for printer setup & support
  • Complete operation with the control panel
  • USB host port (printing from USB storage

Here you can find out more about our products and prices. If you have any further questions, please contact us.

Index FanFold-D V5

The new endless high speed Braille-Printer
FanFold-D V5 is the new high speed Braille printer for endless paper which was invented on the basis of the reliable BrailleBox V5 technology. It combines excellent accuracy of the Braille dots, a very high speed, low maintenance charges and competitive pricing.

The main construction is easy and succinct. The embossment and electronic modules of the BrailleBox, the form feed mechanism of Basic-D and the noise dampening of the Index sound absorbing cabinets were used. This combination of simple principles led to an excellent result: the best and most professional Braille printer for endless paper ever produced.

The FanFold-D V5 will be delivered on a palette and therefore is immediately ready to use.

Price:
14.995,00 EUR after tax
(16.044,65 EUR incl. tax)
Item-No.: HW-46700

Main features

  • 1000 pages/hour
  • Low noise level
  • Distance support via internet
  • High-definition tactile graphics
  • Simple local maintainance
  • Intelligent control panel

Here you can find out more about our products and prices. If you have any further questions, please contact us.

Puma_7

Puma VII

The Marburg Embossing Machine
On five continents, in over fifty countries of the world, Marburg Embossing Machines are used to create embossed plates for braille printing. The new version of the Marburg embossing machine PUMA VII is equipped with a completely new control system and an easily updatable software. The new design and development is based on request of our clients and on our long time experience.

For interpoint printing the plate will be turned at the long side and therefore, only two holes are necessary to fix the plate. All formats are defined and managed via the integrated display. The interpoint adjustment is valid for all formats. Due to this, all formats can be changed without new adjustment of the machine. The integrated display shows a quick preview of the file. All received files can be stored in the PUMA VII, so you can emboss them again without a connected PC.

The PUMA VII can emboss standard braille formats as well as formats with user- specific character and line spacing. This may help braille-beginners. The menu is multilingual and can be adapted to new languages.

Price:
on request
Item-No.: 00-55600

Technical data

Embossement power

  • 18 char./sec
  • 6 dot braille
  • tactile graphics

Braille format

  • medium and large prints
  • per line: max. 40 in medium print
  • lines per page: max. 32 in medium print
  • spacing: variable in 0,1 mm steps
  • line spacing: variable in 0,1 mm steps
  • free positioning of text in 1 mm steps in char. and line directions

Printing plate size

  • width max. 285 mm
  • height max. 340 mm
  • thickness folded max. 0,6mm
  • maximum printing area 245 x 325 mm

Printing plate material

  • Zinc 99,9% DIN 1706
  • Aluminum ISO 209-1 Alu 99,0 Cu
  • Plastic

Printing modus

  • forward
  • backward
  • bi-directional
  • double sided

Controlling

  • via serial interface from computer/notebook
  • USB-storage
  • keyboard

Operating voltage

  • 230 V – other voltages on request
  • power consumption 0,8 KW
  • operating temperature 0° – 40° C

Weight

  • lower frame 120 kg
  • embossing unit 132 kg
  • packing for lower frame 60 kg
  • packing for embossing unit 58 kg

Available accessories

  • Pneumatic precision puncher for main holes of printing plates, Item-No.: 00-55002
  • TactileView Graphic-software with appropriate stamp, Item-No.: HW-15120

Main features

  • Easy handling via touch screen-display with a multi-language menu (German, English, French etc.)
  • Easy integration of new languages
  • Preview of printout with analysis of the document
  • Reception, storage, and printing of files via USB-storage or serial interface
  • Control by DOS driver, RTFC, Duxbury, BrailleGraf
  • Easy adjustment of the interpoint
  • Optimized printing
  • Storage of user defined format
  • Online help on display

Here you can find out more about our products and prices. If you have any further questions, please contact us.

IMG_4974-533x400

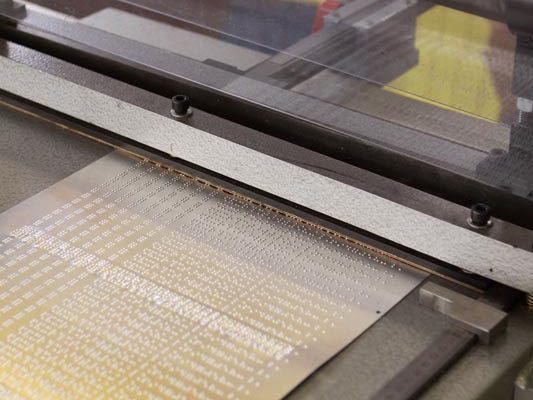

Professional Plate Cutter PPC

The Professional Plate Cutter PPC was developed for cutting aluminum, zinc and steel sheets as well as plastic foil which are used as a template for Braille printing. These materials are easily cut up to a thickness of 2 mm.

Price:
on request
Item-No.: HW-61005

Technical data

  • Cutting width max. 530 mm
  • Two knifes made of hardened and ground steel
  • Spring loaded built-in clamping unit in the front
  • Metric edge scales in the front, tolerance 0.1 mm
  • Fully adjustable back stop with metric scale for batch work, tolerance 0.1 mm
  • Smallest cutting size (front) 45 mm
  • Traveling distance of back angle 0 to 300 m
  • stable full steel construction
  • All angle and measuring items adjustable
  • Simple exchange of blades
  • Adjustable cutting angle
  • Adjustable kerf
  • Size: 74 cm x 29 cm x 45 cm
  • Weight: 66 kg

Available accessories

  • Alternative cutting bars

Here you can find out more about our products and prices. If you have any further questions, please contact us.

pneum

Pneumatc Punch

The pneumatic punch is used for punching feed holes on braille plates and has two-hand operation for maximum safety. The plates are inserted manually into the central insertion slot.

Price:
on request
Item-No.: 00-55002

Technical data

Size

  • 10 hole pins
  • pneumatic connection to 6-bar standard line or via compressor
  • compressor connection: 220/240V/50Cy, 16A fuse
  • width 450 mm
  • length 300 mm
  • height 250 mm

Here you can find out more about our products and prices. If you have any further questions, please contact us.

Rotation-Seitenansicht_klein

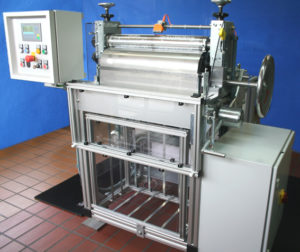

Marburger Rotary

Time-saving mass-production of braille periodicals and books, this is the essential feature of the Rotary Printing Press. Up to 28,000 pages/h (approx. 7,000 sheets per hour) can be printed with this machine. The machine uses paper from a roll, simultaneously makes a middle fold in the sheet and cuts it off after it has been printed.

Price:
on request
Item-No.: 00-61000

Technical data

Character size

  • medium print (dot spacing 2,5 mm)
  • large print (dot spacing 2,7 mm)

Printing plate size

  • DIN A 4 or
  • large format 280*340 mm

Roll format

  • width up to 560 mm
  • diameter up to 780 mm

Shipping weight

  • 770 kg

Here you can find out more about our products and prices. If you have any further questions, please contact us.

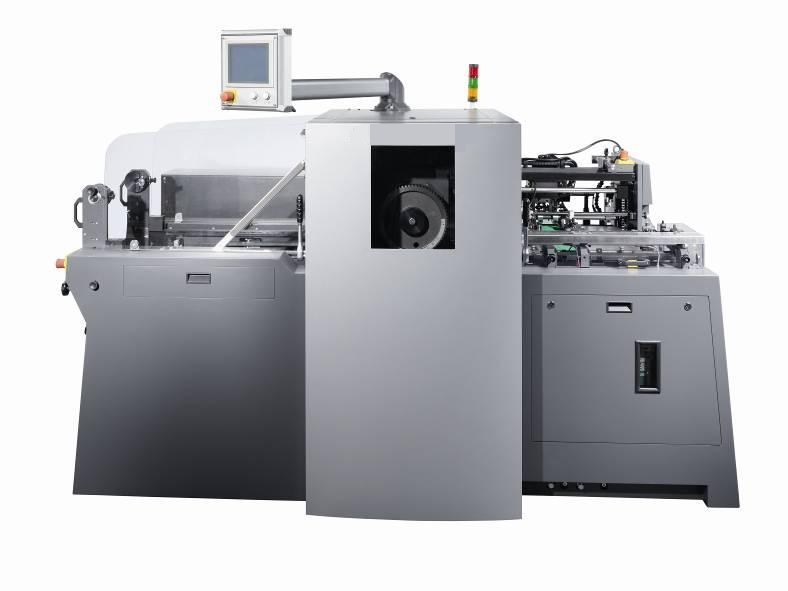

Braille Flat Bed Printing Press BFP58

For embossing braille on paper and cards. In basic configuration for 400 V, 3 phases, 50 Hz; equiped with suction belt feeder, feeding table, printing and delivery station.

Price:
on request
Item-No.: 00-61006

Technical data

  • paper format 400 x 580 mm
  • paper format 148 x 210 mm
  • print area 370 x 560 mm
  • margin for gripper min. 20 mm
  • printing pressure max 1,2 MN (120 t)
  • machine (output / hour) 6000
  • connection load 10 kW
  • size: 260 cm x 175 cm (Length x width)
  • weight 3000 kg

Available accessories

  • aluminum and zinc plates
  • paper

Here you can find out more about our products and prices. If you have any further questions, please contact us.
